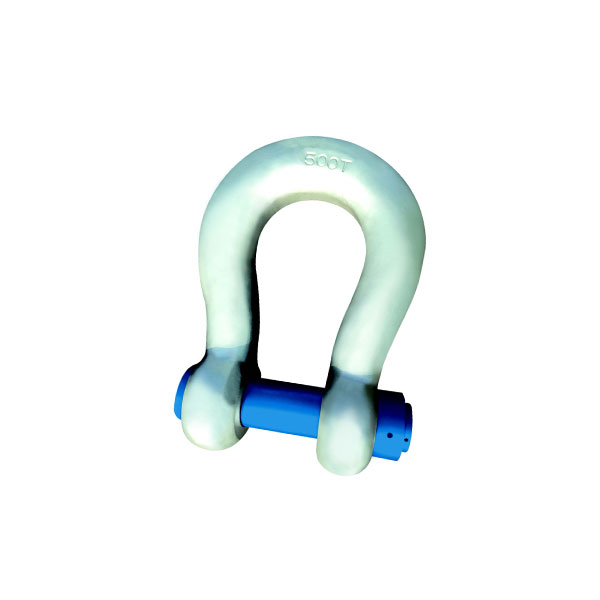

Large-tonnage Round Body Shackle

High-strength alloy steel: the body and lateral pin are made of high-quality alloy steel.

Inquire Now None

product details

Industry solutions:

Technology advantages:
1. High-strength alloy steel: the body and lateral pin are made of high-quality alloy steel. High
temperature quenching and tempering are adopted.
2. Non-destructive inspection: 100% non-destructive inspection is carried out for products to
guarantee no defects influencing tension.
3. There is permanent rated load marking.
4. EU standard tension test: the maximum test load of 200T-500T shackle is 1.5 times of the working
load. The maximum test load of 800T-1000T tackle is 1.33 times of the rated work load.
5. Die forging and free forging are combined for large-tonnage shackles.

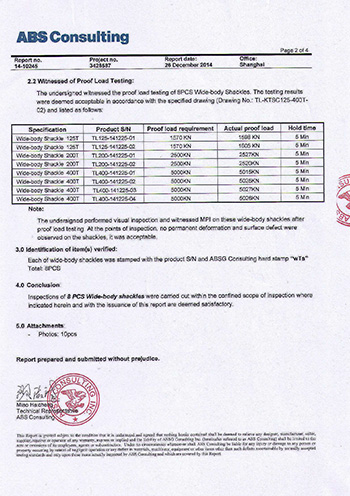

6. CCS and ABS and other authorized certification can be carried out.

Large-tonnage Round Body Shackle
