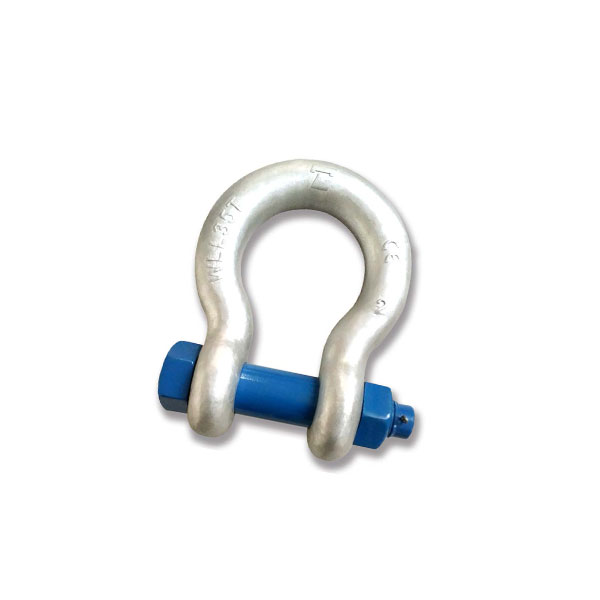

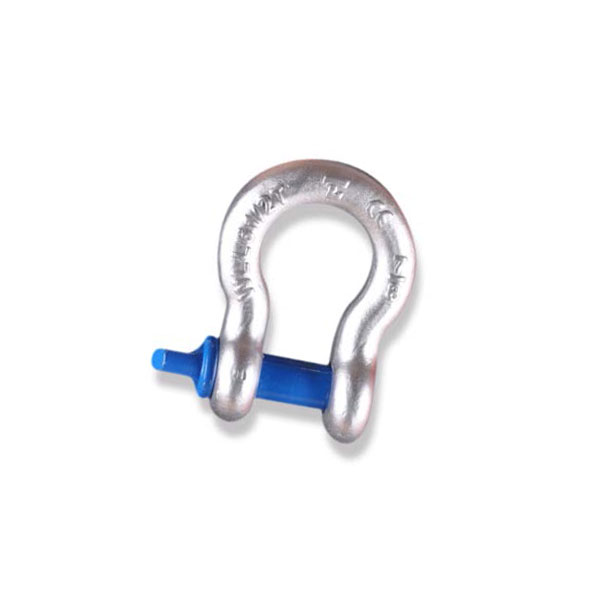

Grade T8 bow shackle

Technology advantages:

1. The shackle is forged with high-quality alloy and undergoes quenched-tempered heat treatment.

2. Compared with Grade S6 shackle, the product is featured with small volume and strong tension and applies to hoisting in the

limited space.

3. There is permanent rated load marking.

4. The 100% non-destructive inspection is carried out for shackles to guarantee no defects influencing tension.

5. The product meets ISO2415-2004 technical requirements.

6. The minimum breaking load is 8 times of rated work load. For shackles heavier than 85T, the minimum breaking load is 4 times of

the work load.
